Floor Stand Bracket for Mini Split Condenser Units
HomeStore

Floor Stand Bracket for Mini Split Condenser Units

Floor Stand Bracket for Mini Split Condenser Units

Description

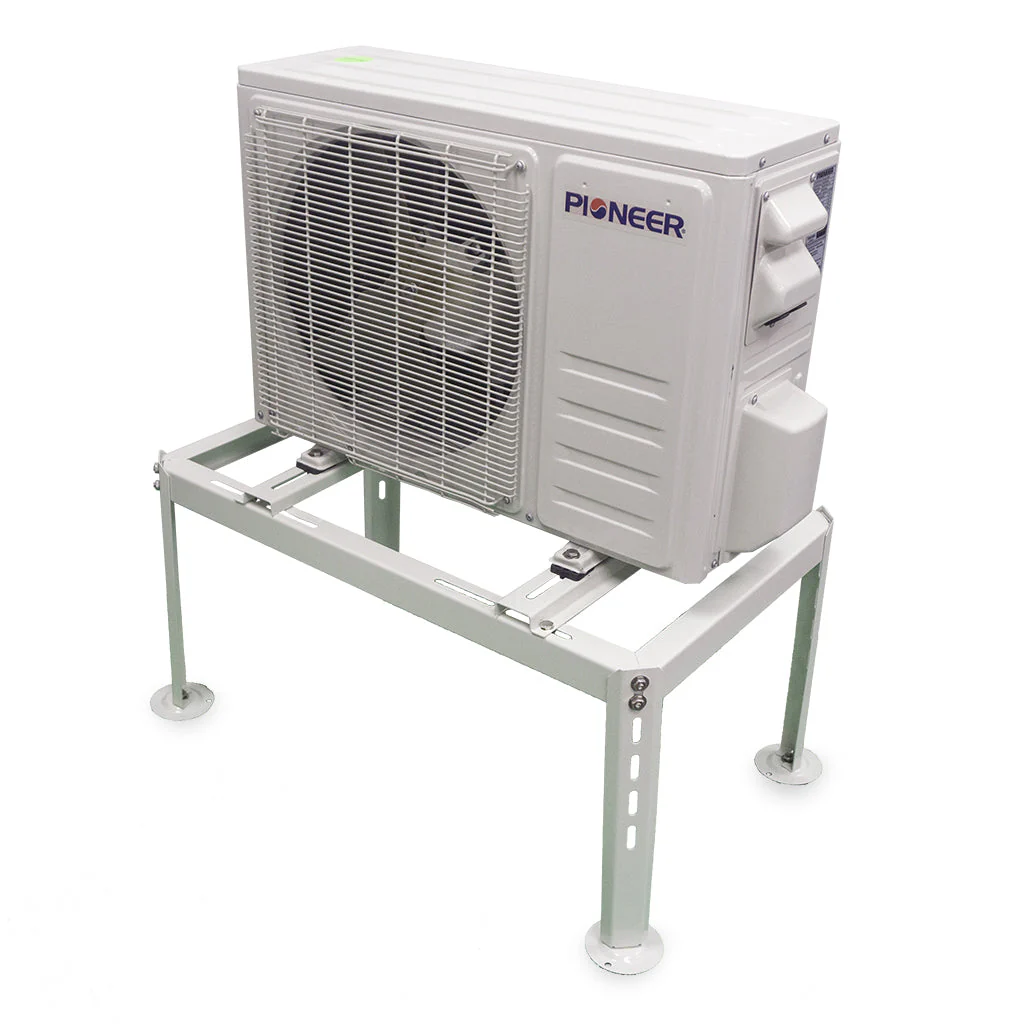

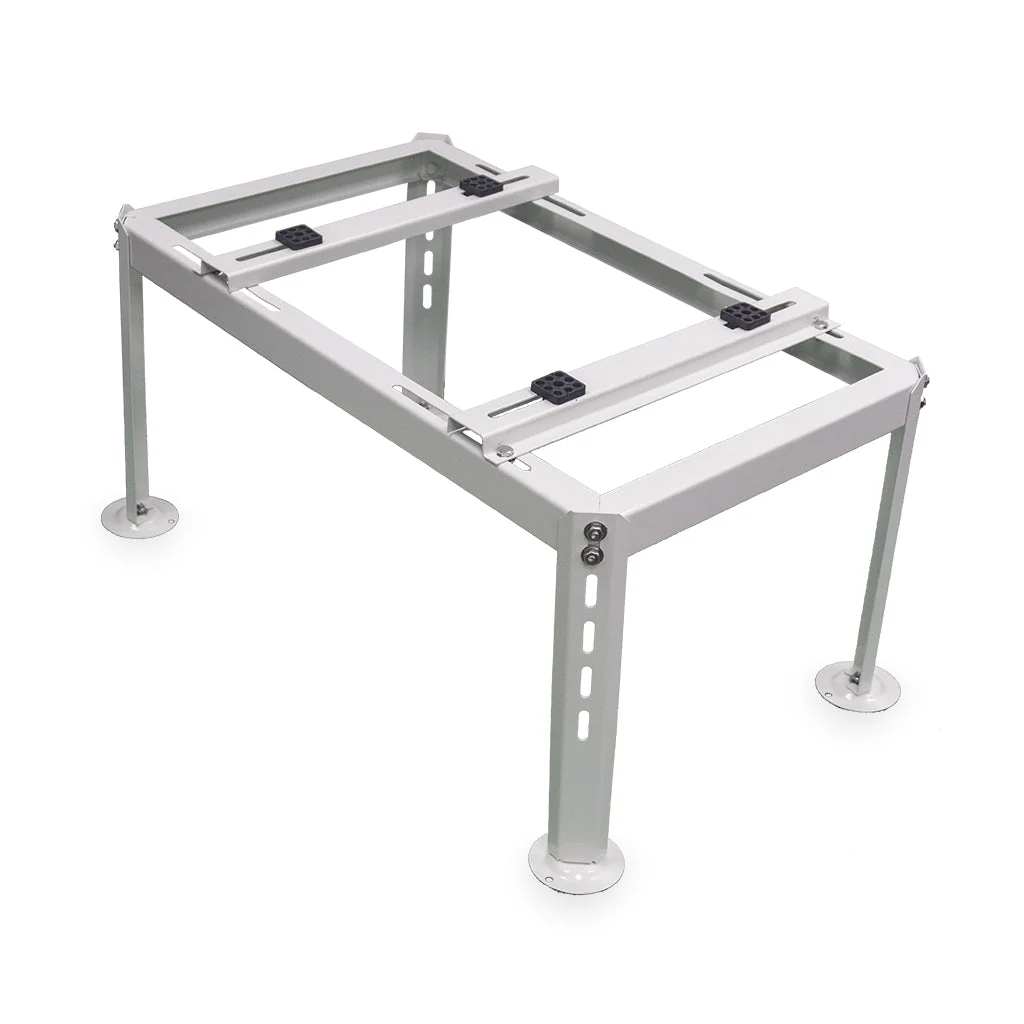

Protect your Pioneer Mini Split investment from snow build-up, flooding, debris, and other treacherous perils with this heavy-duty floor mountable condenser bracket. For situations where wall-mounting is not desirable or feasible, this universal bracket offers a flexible alternative to elevate your system up to 18 inches higher above ground and out of harm's way.

Summary

  • Highly Weather/Snow Proof, White Powder-Coated Surface
  • 5 Different Adjustable Height Levels w/ Independent Slots
  • Includes Rubber Vibration Absorbers for Condenser Unit
  • Slotted Plate-Shaped Feet for Mounting to Pad or Slab

Specifications

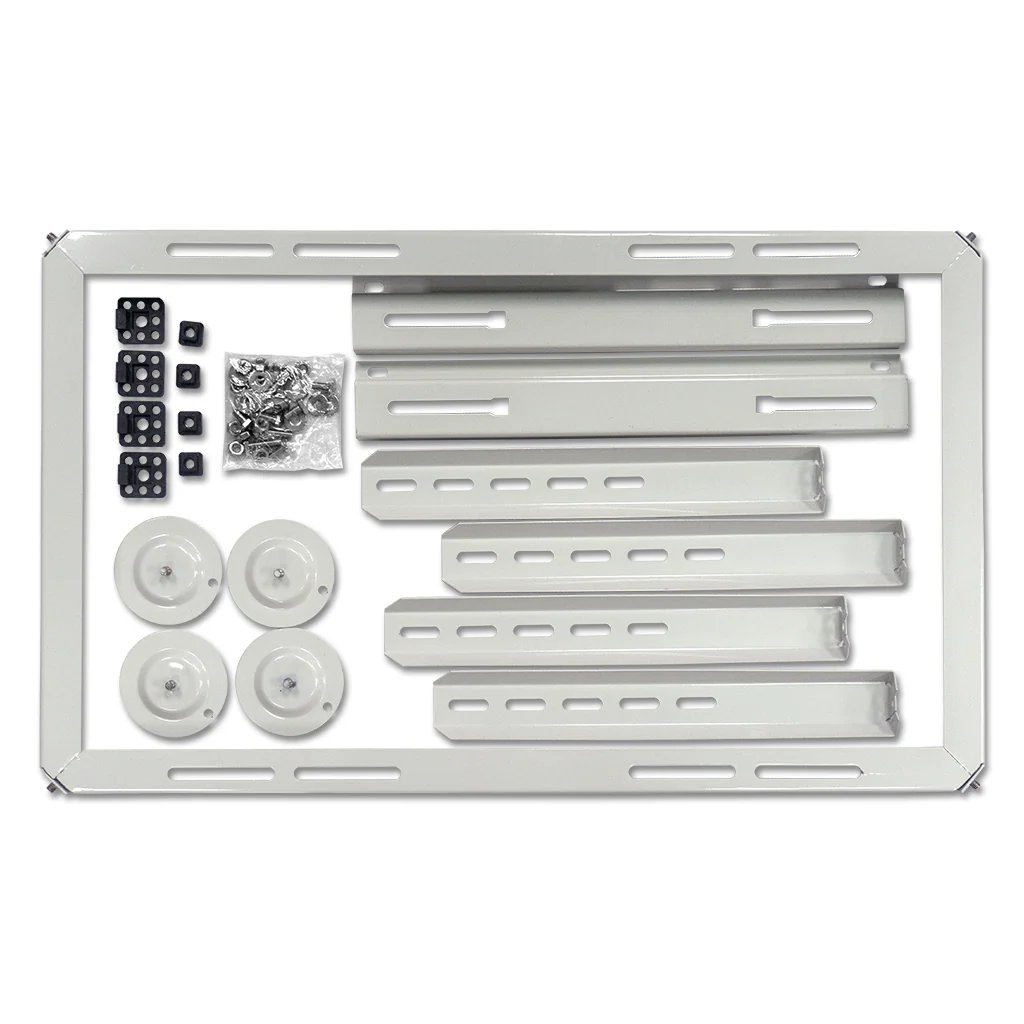

  • Hot galvanized bracket set, 2.2mm thickness
  • Stainless Steel SS201 standard hardware
  • Loading weight: 350 lbs (2P), 450 lbs (3P)
  • 14 mm Wrench Required for Assembly
  • Assembled Dimensions (WDH):
    • 2P: 31"-1/2 x 18"-7/8 x 15"-3/4
      • Compatible with mounting feet up to 27"-1/2 wide
    • 3P: 31"-1/2 x 23"-5/8 x 15"-3/4
      • Compatible with mounting feet up to 29" wide

Video

Document version



Select Size
From $29.62

Original: $98.75

-70%
Floor Stand Bracket for Mini Split Condenser Units—

$98.75

$29.62

More Images

Floor Stand Bracket for Mini Split Condenser Units - Image 2
Floor Stand Bracket for Mini Split Condenser Units - Image 3

Floor Stand Bracket for Mini Split Condenser Units

Description

Protect your Pioneer Mini Split investment from snow build-up, flooding, debris, and other treacherous perils with this heavy-duty floor mountable condenser bracket. For situations where wall-mounting is not desirable or feasible, this universal bracket offers a flexible alternative to elevate your system up to 18 inches higher above ground and out of harm's way.

Summary

  • Highly Weather/Snow Proof, White Powder-Coated Surface
  • 5 Different Adjustable Height Levels w/ Independent Slots
  • Includes Rubber Vibration Absorbers for Condenser Unit
  • Slotted Plate-Shaped Feet for Mounting to Pad or Slab

Specifications

  • Hot galvanized bracket set, 2.2mm thickness
  • Stainless Steel SS201 standard hardware
  • Loading weight: 350 lbs (2P), 450 lbs (3P)
  • 14 mm Wrench Required for Assembly
  • Assembled Dimensions (WDH):
    • 2P: 31"-1/2 x 18"-7/8 x 15"-3/4
      • Compatible with mounting feet up to 27"-1/2 wide
    • 3P: 31"-1/2 x 23"-5/8 x 15"-3/4
      • Compatible with mounting feet up to 29" wide

Video

Document version
